VC-X Series
VC-X Series
Effective for highly-efficient intensive machining of dies and parts that are more complex or more detailed and complicated.
This specialized 5-axis machining center has been developed from OKK’s advanced technologies. This machine eliminates loss of accuracy and burden on the operators caused by multi-setup operation and shortens lead time under process integration.
Compact machine with powerfully smooth feed

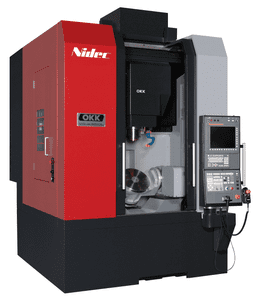

VC-X350
-
Travel X axis
600 mm -
Travel Y axis
430 mm -
Travel Z axis
460 mm -
Travel A axis
-120 ‒ 30 degree -
Travel C axis
360 degree -
Table size
Φ350 mm -
Table load
200 kg -
Took shank
BT40 -
Spindle speed (max)
12,000 rpm -
Controller
FANUC 31i-B5
Providing the highest level of space saving and loading volume for workpieces among same-class machines
VC-X500
-
Travel X axis
700 mm -
Travel Y axis
850 mm -
Travel Z axis
610 mm -
Travel A axis
-120 ‒ 30 degree -
Travel C axis
360 degree -
Table size
500 x 500 mm -
Table load
500 kg -
Took shank
BT40 -
Spindle speed (max)
12,000 rpm -
Controller
FANUC 31i-B5
VB-X650
-
Travel X axis
850 mm -
Travel Y axis
610 mm -
Travel Z axis
510 mm -
Travel B axis
-110 to 110 degree -
Travel C axis
360 degree -
Table size
φ650 mm -
Table load
350 kg -
Took shank
BT40 (dual contact) -
Spindle speed (max)
15,000 rpm -
Controller
FANUC 31i-B5Plus
Equipped with a direct-drive rotary table! Next-generation 5-axis machine that enables turning!
VC-X350L
-
Travel X axis
600 mm -
Travel Y axis
430 mm -
Travel Z axis
460 mm -
Travel A axis
-120 ‒ 30 degree -
Travel C axis
360 degree -
Table size
Φ350 mm -
Table load
100 kg -
Took shank
BT40 -
Spindle speed (max)
12,000 rpm -
Controller
FANUC 31i-B5
Equipped with a direct-drive rotary table! Next-generation 5-axis machine that enables turning!
VC-X500L
-
Travel X axis
700 mm -
Travel Y axis
850 mm -
Travel Z axis
610 mm -
Travel A axis
-120 ‒ 30 degree -
Travel C axis
360 degree -
Table size
Φ500 mm -
Table load
250 kg -
Took shank
BT40 -
Spindle speed (max)
12,000 rpm -
Controller
FANUC 31i-B5
