HM-X Series
HM-X Series
5-axis machining center is built on the battlefield proven HM-series platform.
Excellent both in speed and rigidity.
Reliability has further increased with our innovative trunnion table

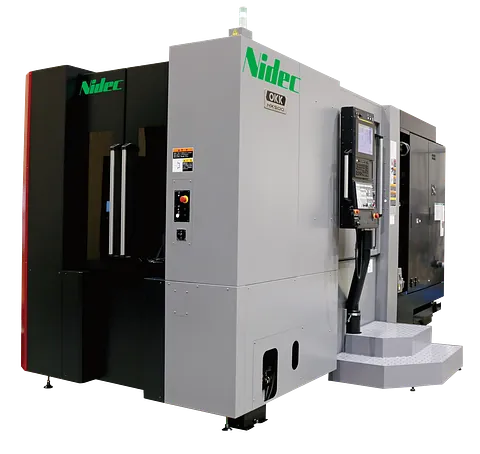

HM-X6000
-
Travel X axis
1,050 mm -
Travel Y axis
900 mm -
Travel Z axis
820 mm -
Travel A axis
-110 ‒ 20 degree -
Travel C axis
360 degree -
Table size
600 x 600 mm -
Table load
650 kg -
Took shank
BT50 -
Spindle speed (max)
12,000 rpm -
Controller
FANUCF31i-B5

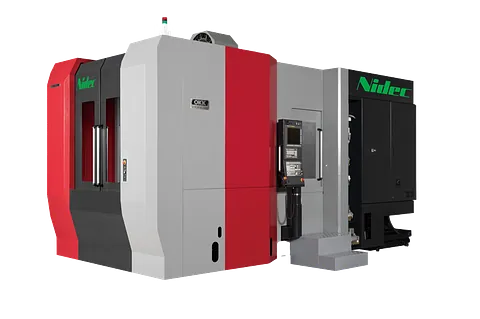

HM-X6100
-
Travel X axis
1,050 mm -
Travel Y axis
900 mm -
Travel Z axis
1,000 mm -
Travel A axis
-140 to 50 degree -
Travel B axis
360 degree -
Table size
600 x 600 mm -
Table load
650 kg -
Took shank
BT40 / BT50 -
Spindle speed (max)
12,000 rpm -
Controller
FANUC 31i-B5Plus
- Tilting spindle head structure allows for superior 5 axis machining without resulting in the inclining of heavy workpieces
- Up to 2,000 kg can be loaded on the table supported with large crossed roller bearings
- Wide adaptability: medium and large-sized workpieces regardless of their materials

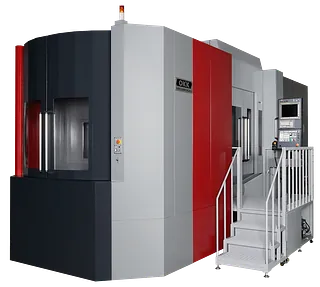

HM-X8000
-
Travel X axis
1,300 mm -
Travel Y axis
1,100 mm -
Travel Z axis
1,550 mm -
Travel A axis
-110 ‒ 40 degree -
Travel C axis
360 degree -
Table size
800 x 800 mm -
Table load
800 kg -
Took shank
BT50 -
Spindle speed (max)
12,000 rpm -
Controller
FANUCF31i-B5
